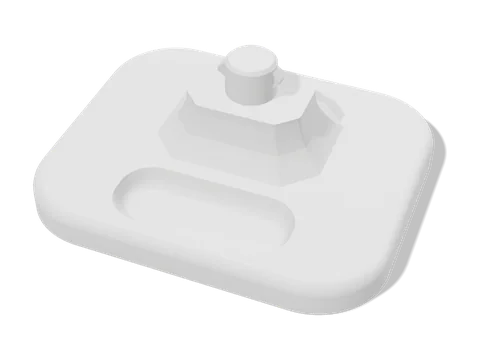

Base
The wide foot with a tray for earbuds, and the bayonet spigot on its pedestal.
- Size
- 168 × 140 × 58 mm
- Flat on the bed, no supports. Use 35% infill or more to make it heavier.
- Filament
- ≈ 150 g
Free 3D model
Headphone Stand

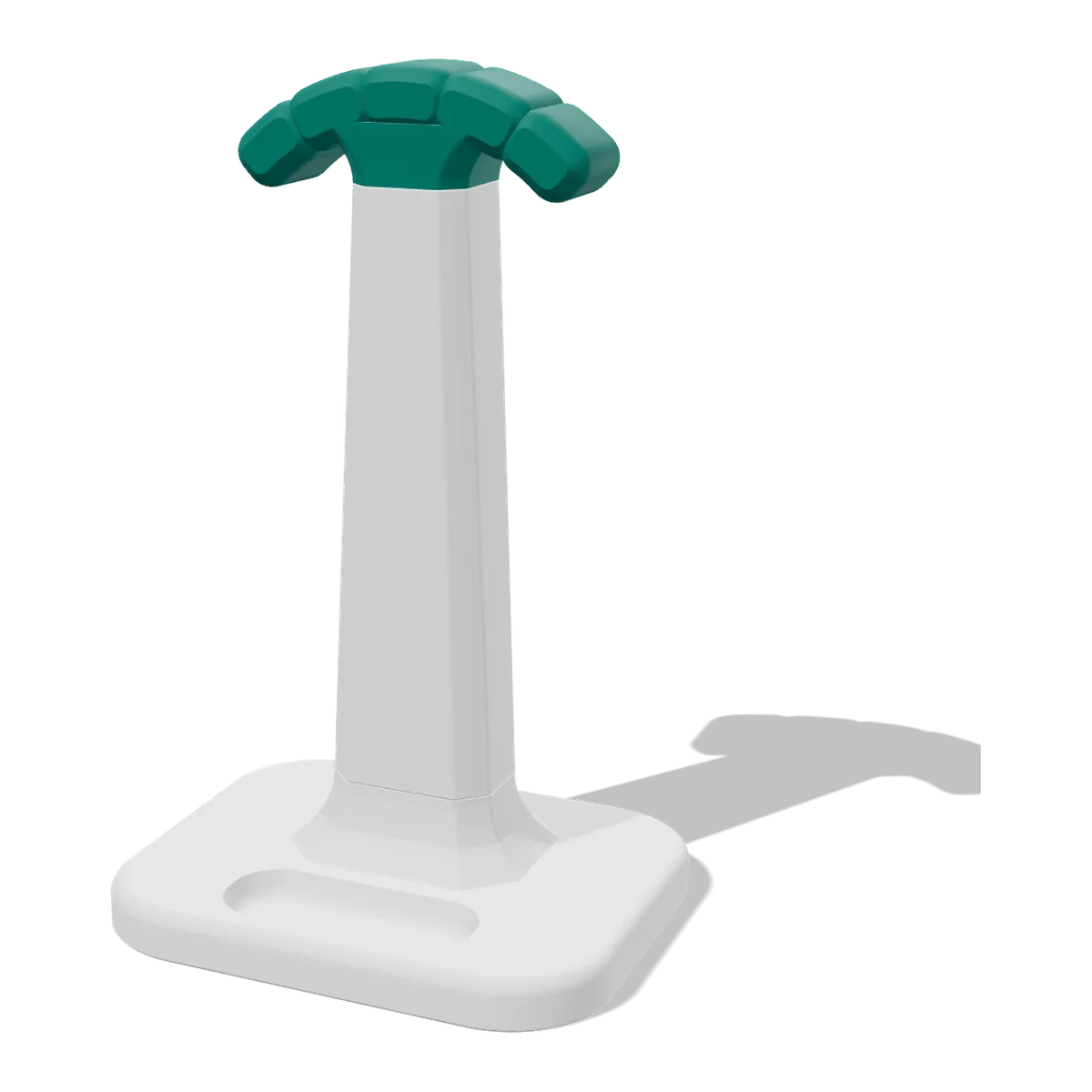

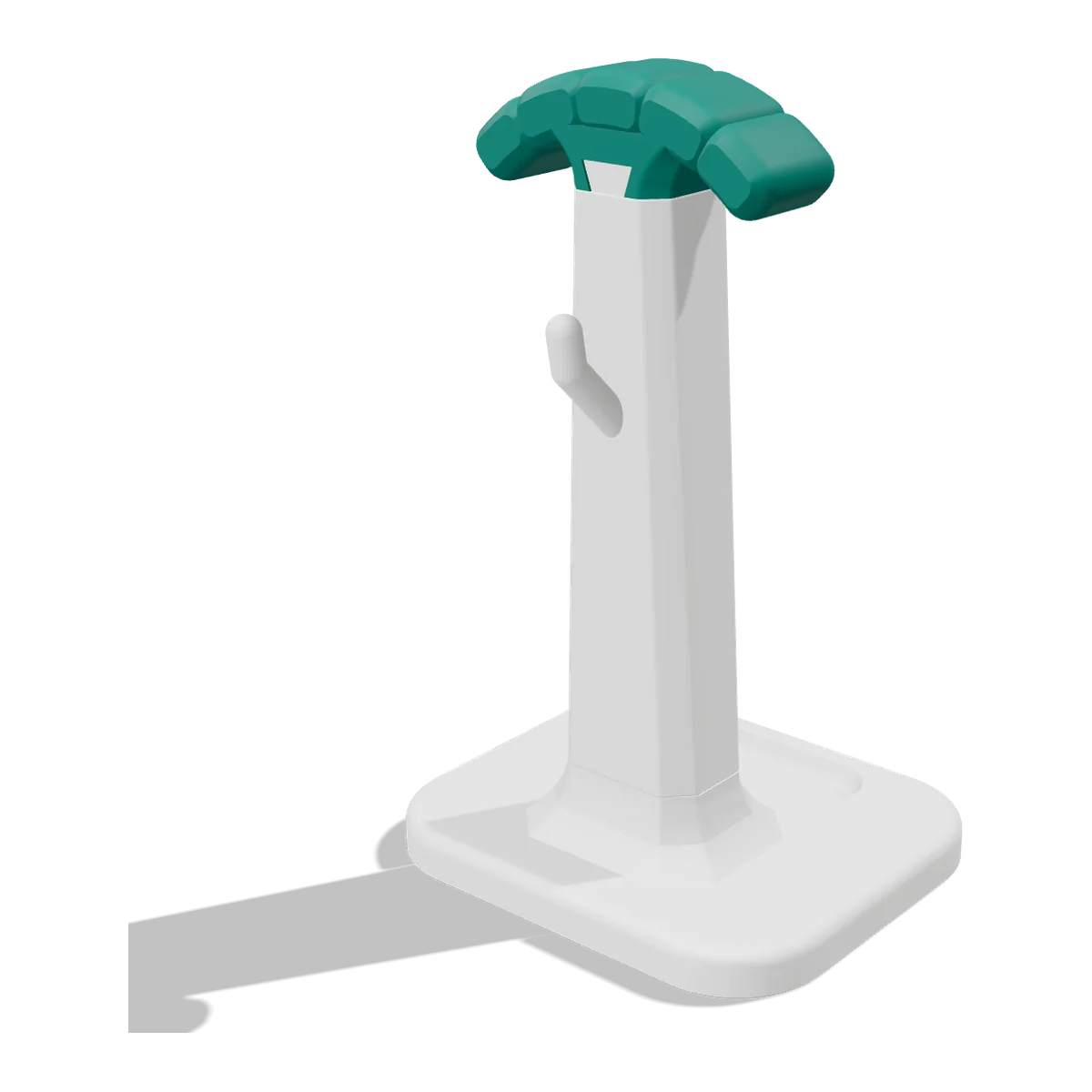

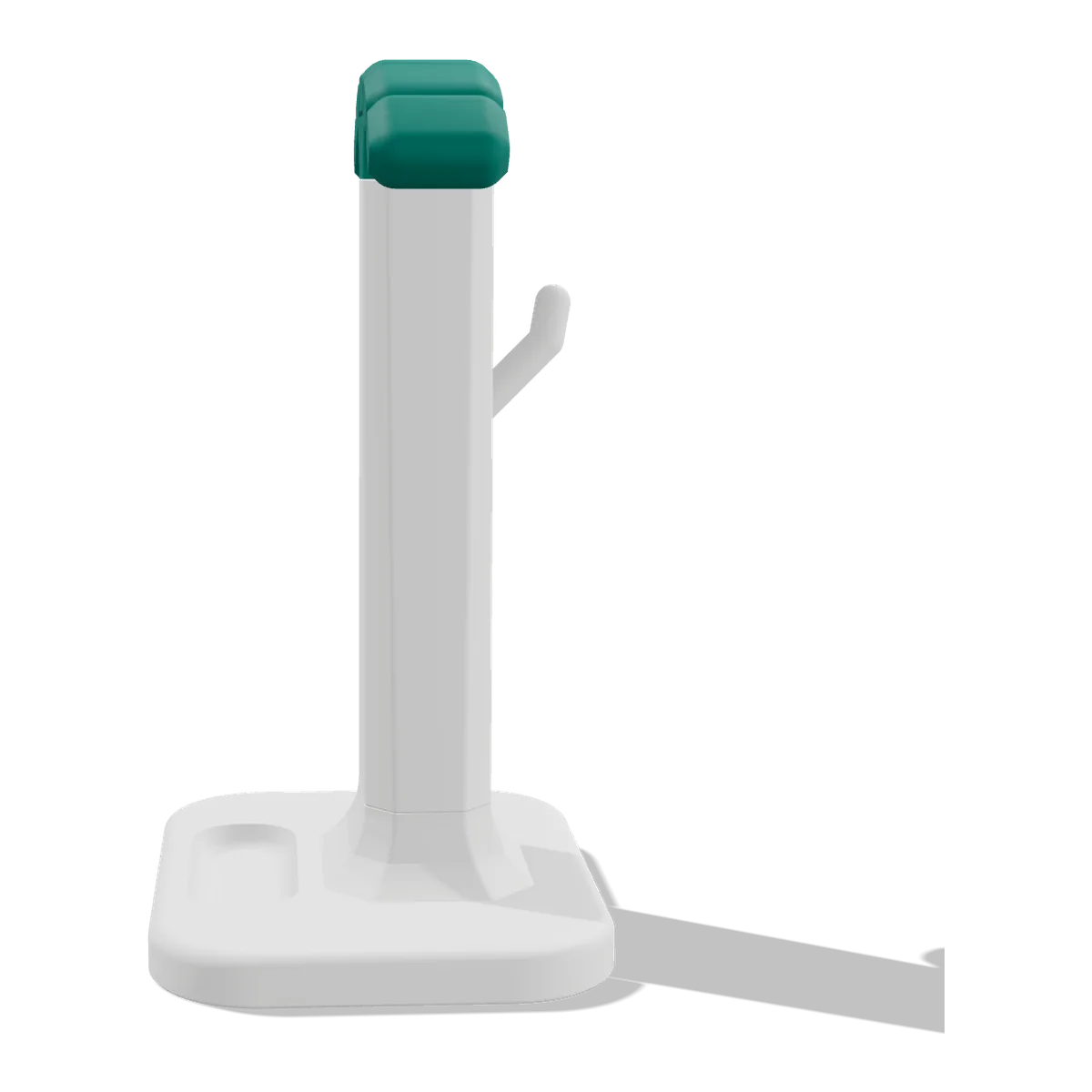

A sturdy stand for over-ear headphones that goes together without screws or glue. The upright twists onto the base with a bayonet lock and the cushioned hanger slides onto a dovetail, so the joints can't be seen from the front. There's a tray for earbuds in the base and a hook at the back for the cable. Every part prints without supports.
- 3printed parts
- 14 × 17 × 27 cmassembled (L × W × H)
- ≈ 0.3 kgfilament in total
- 203 mmbuild height for the upright; every part fits a 220 × 220 mm bed
Free for personal use under CC BY-NC 4.0: print it, remix it and share it with credit to Shapekit. Please don't sell the files or the prints.
In 3D
Turn it, take it apart
Every part as you print it. Pick colours to see what your filament will look like.
The 3D model (0.9 MB) loads when you get here.
Preview colours
Base and upright
Hanger
Drag to rotate · scroll or pinch to zoom
In the download
3 parts, ready to print
Every STL is already placed the right way up. Download them all at once, or one by one.

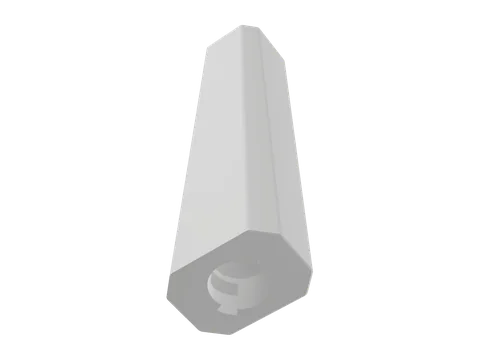

Upright
The column, with the bayonet socket in its foot, a dovetail on top and a cable hook at the back.
- Size
- 203 × 66 × 56 mm
- Standing on its foot, no supports. A 5 mm brim helps the tall part stay put.
- Filament
- ≈ 110 g

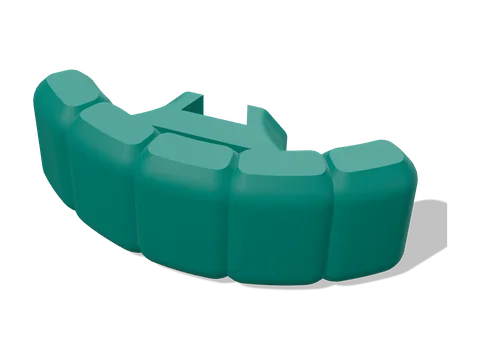

Hanger
The saddle the headband rests on: five cushions on an 80 mm radius, shaped like the top of a head (115 mm wide), so the headband sits as it does on you and isn't stretched. A dovetail slot underneath.
- Size
- 115 × 40 × 39 mm
- On its front face, no supports.
- Filament
- ≈ 41 g
Also needed
Parts you buy
- Nothing to buy: no screws and no glue. The parts lock together.
- Optional: four small self-adhesive rubber feet under the base, so it doesn't slide on a smooth desk.
- Fits over-ear headphones and headsets up to about 250 mm from the top of the headband to the bottom of the ear cups, such as Sony WH-1000XM, AirPods Max and most gaming headsets.
Print settings
Slicer settings
0.20 mmlayer height
3walls
15%gyroid infill (35% for the base)
PLA or PETGmaterial
For a 0.4 mm nozzle. Filament amounts are estimates for these settings.
Assembly
How to build it
Print the parts
No supports needed. Print the base with 35% infill or more for weight, and the upright standing up with a brim.
Clean the joints
Scrape any elephant's foot off the edge of the socket in the upright's foot and the bottom of the hanger's slot, so the parts go together easily.

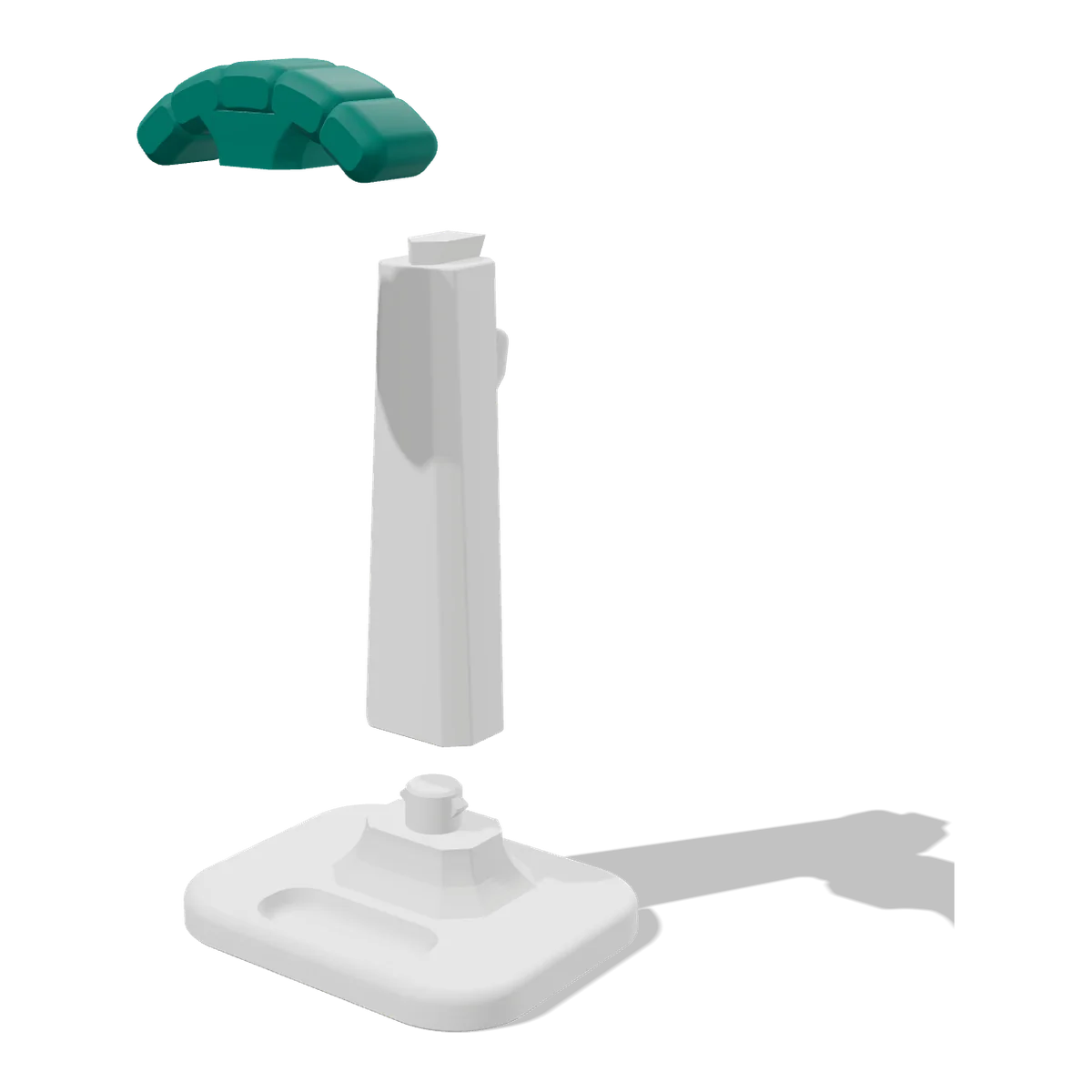

Set the upright on
Turn the upright about 35° anticlockwise (seen from above), line up the two slots in its foot with the lugs on the spigot and lower it onto the pedestal.
Lock it
Turn the upright clockwise until it lines up with the pedestal and stops. The lugs now hold it down.
Slide on the hanger
Put the hanger on the top of the upright, a few centimetres to the front, and push it backwards onto the dovetail until it stops and the front faces line up.
Use it
Hang your headphones on the cushions, drop your earbuds in the tray and wind the cable round the hook at the back.
