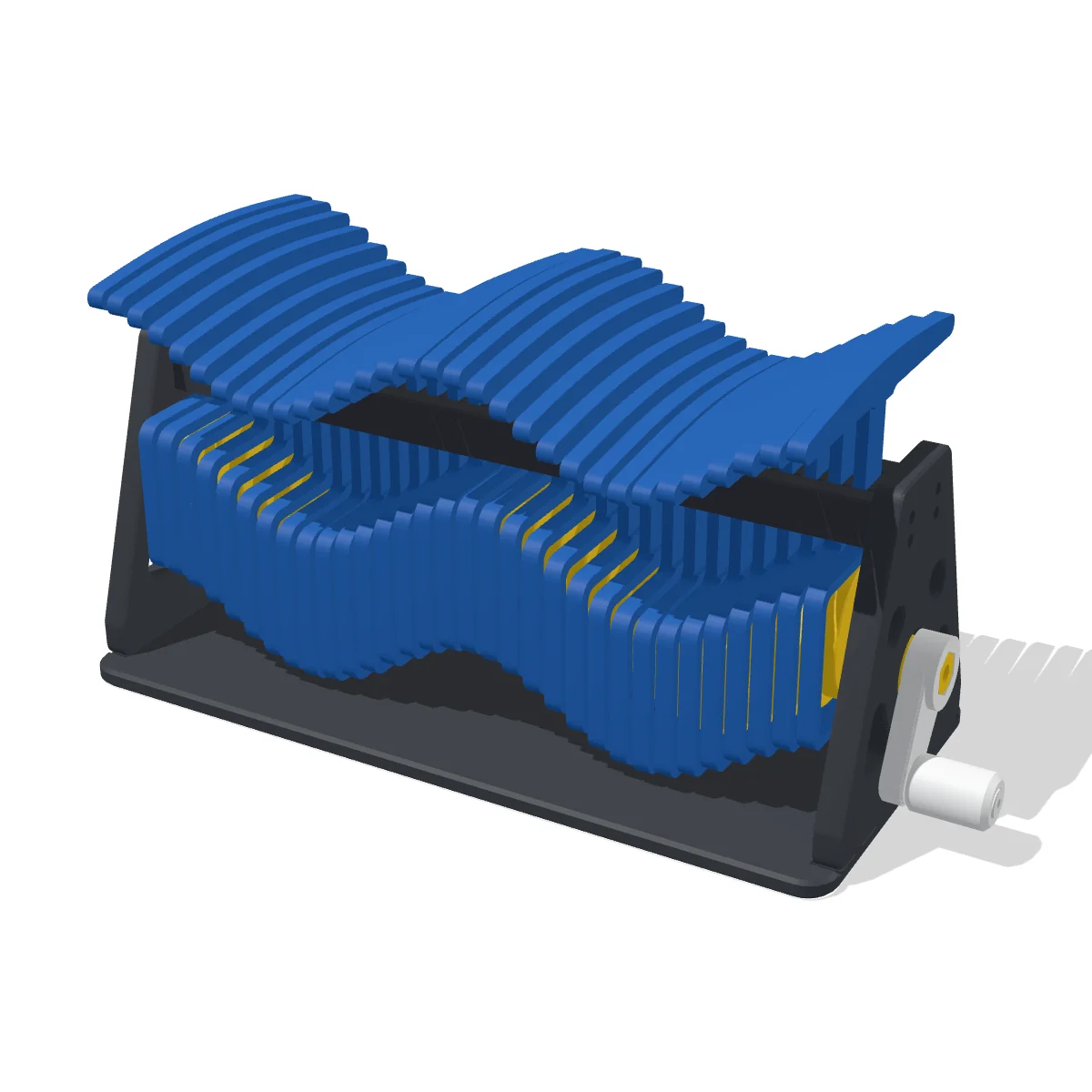

3D render of the Kinetic Wave Sculpture: 32 blue slats on a graphite frame, their crests forming two waves, with a white crank on the right
Free 3D model

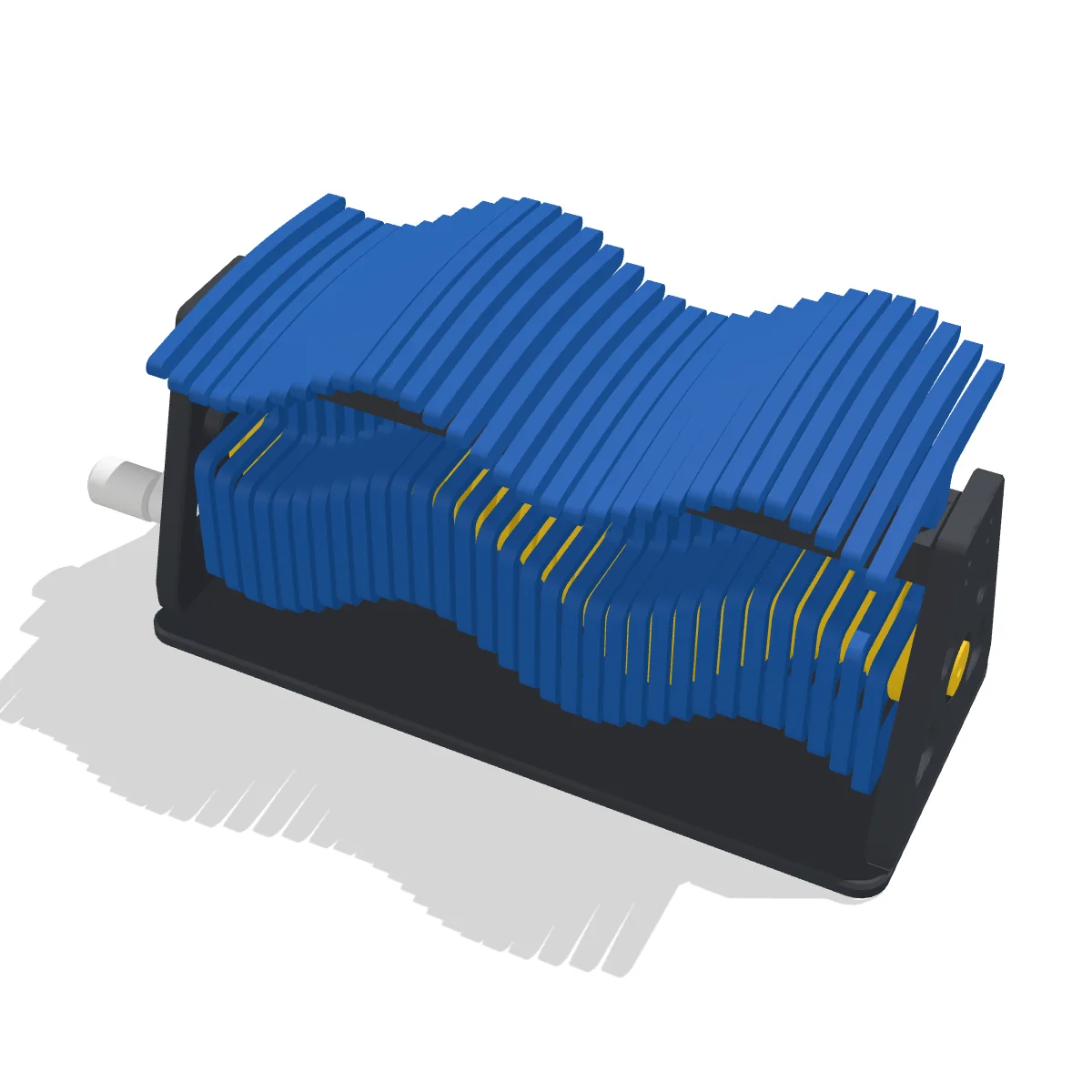

Kinetic Wave Sculpture

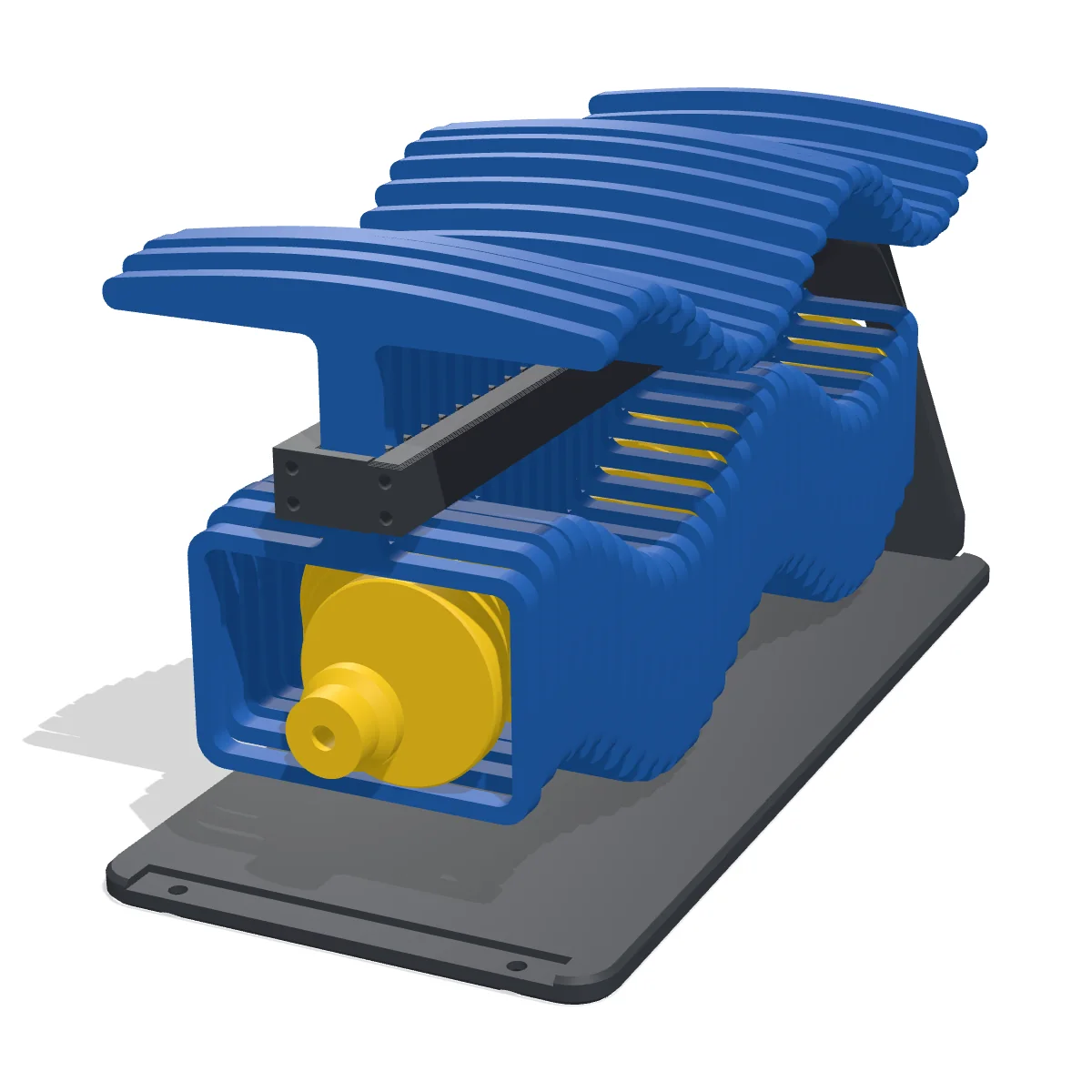

A row of 32 slats on a camshaft. Every slat is a scotch yoke: a flat frame around its own eccentric cam, so the cam lifts it 20 mm and pulls it back down on every turn. Each cam sits 22.5° further round than the one before, so the crests on top of the slats make two full waves that roll along while you turn the crank. The cams are all the same part: the key on top of each one fits the socket of the next only one way, turned 22.5°, so the camshaft can't go together wrong. Half the slats always go down while the other half go up, so the crank turns evenly. Nothing needs supports.

  • 73printed parts
  • 10 × 24 × 11 cmassembled (L × W × H)
  • ≈ 0.6 kgfilament in total
  • 212 mmbed length for the base; the comb and the rail are 198 mm
Download all files ZIP · 0.3 MB

Free for personal use under CC BY-NC 4.0: print it, remix it and share it with credit to Shapekit. Please don't sell the files or the prints.

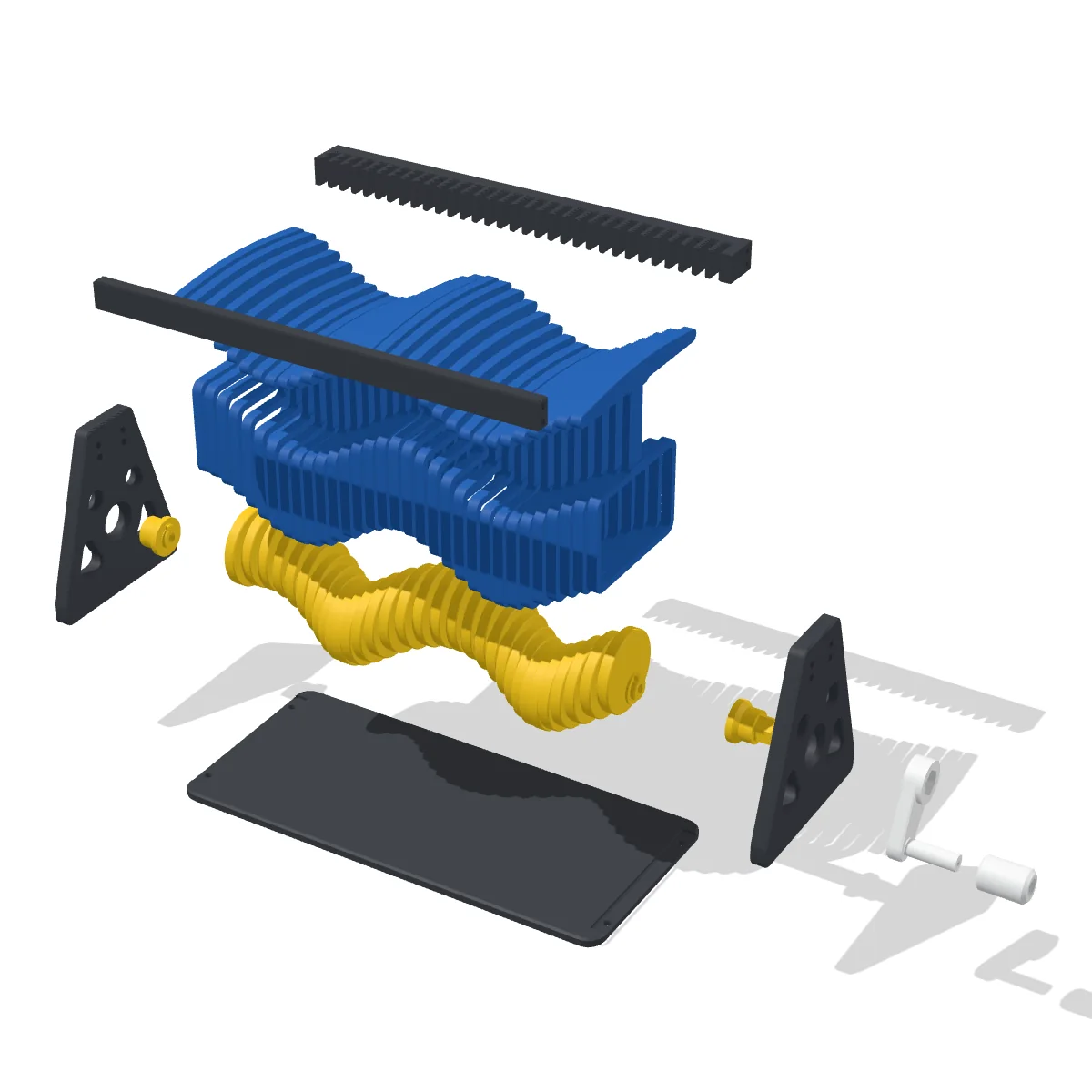

Take it apart in 3D · Parts · How to build it

In 3D

Turn it, take it apart

Every part as you print it. Pick colours to see what your filament will look like.

The 3D model (1.4 MB) loads when you get here.

Preview colours

Slats
Camshaft
Frame
Crank

Drag to rotate · scroll or pinch to zoom

In the download

10 parts, ready to print

Every STL is already placed the right way up. Download them all at once, or one by one.

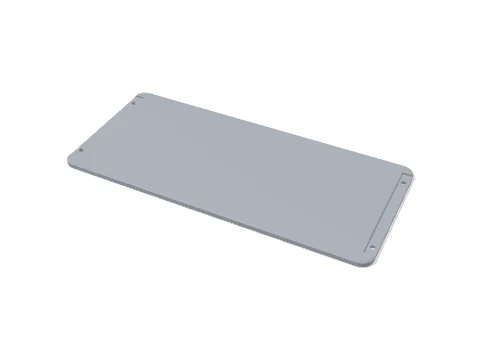

Base

Holds the two end plates in grooves. Four M3 × 12 screws come up from below into the plates.

Size
212 × 96 × 5 mm
Print
Flat. No supports.
Filament
≈ 73 g
STL 62 KB

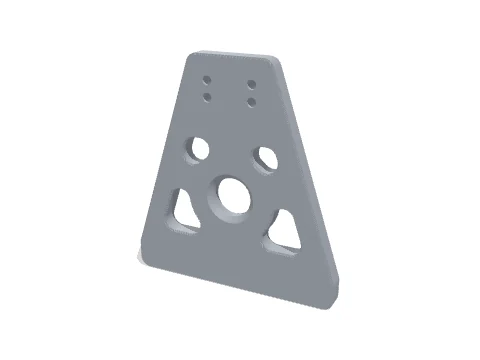

End plate × 2

Carries one end of the camshaft in a countersunk hole, and the comb and the rail at the top on four M3 × 16. Both ends use the same part.

Size
86 × 80 × 7 mm
Print
Flat on its side. No supports.
Filament
≈ 43 g
STL 0.6 MB

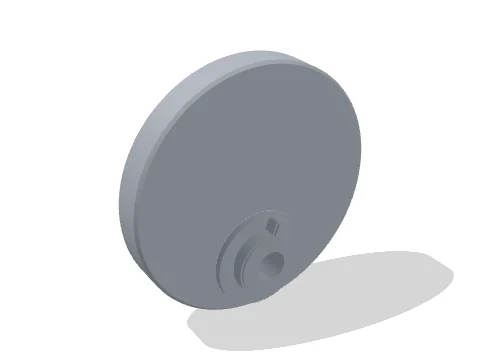

Cam × 32

A disc 36 mm across, 10 mm off the axis, with a key on top and a keyed socket underneath. The socket is turned 22.5° from the key, so every cam sits 22.5° further round than the one below it: 16 cams make one wave.

Size
36 × 36 × 8 mm
Print
Disc down, key up. No supports. Scrape off any elephant's foot, so the slat around it doesn't rub.
Filament
≈ 143 g
STL 0.1 MB

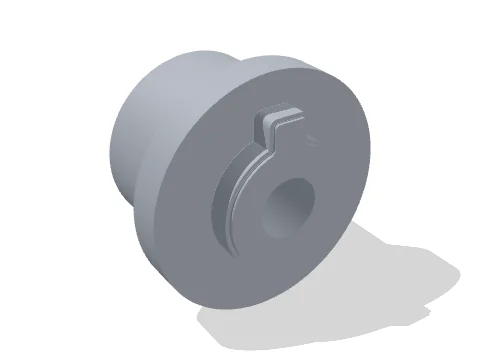

Left journal

Its key goes into the socket of the first cam, and its round end turns in the left end plate.

Size
18 × 18 × 12 mm
Print
Standing on its round end.
Filament
≈ 2 g
STL 74 KB

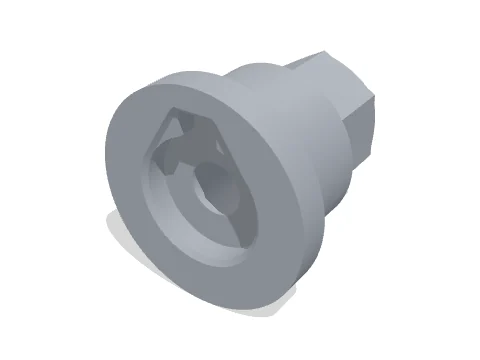

Right journal

Takes the key of the last cam, turns in the right end plate and carries the crank on its hex.

Size
18 × 18 × 18 mm
Print
Flange down, hex up.
Filament
≈ 2 g
STL 86 KB

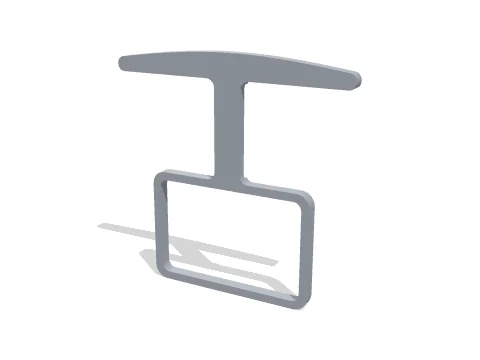

Slat × 32

A scotch yoke: the window goes around one cam, which lifts the slat and pulls it down 20 mm on every turn. The thin stem slides in the comb, and the crest on top is one line of the wave.

Size
90 × 87 × 4 mm
Print
Flat, as in the file. Turn on elephant's foot compensation: the slats are 4.4 mm thick at a 6 mm pitch.
Filament
≈ 264 g
STL 66 KB

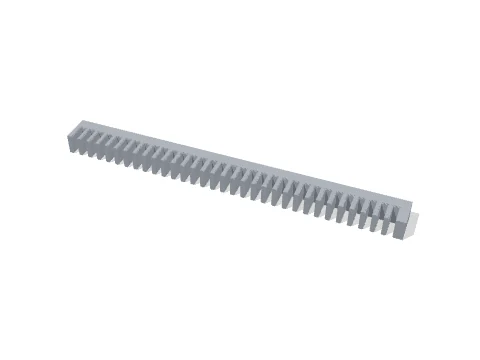

Comb

32 slots, one for each stem, open at the front so the slats slide in. It keeps them upright and in line.

Size
198 × 17 × 12 mm
Print
As in the file, the slots standing up. No supports.
Filament
≈ 28 g
STL 0.3 MB

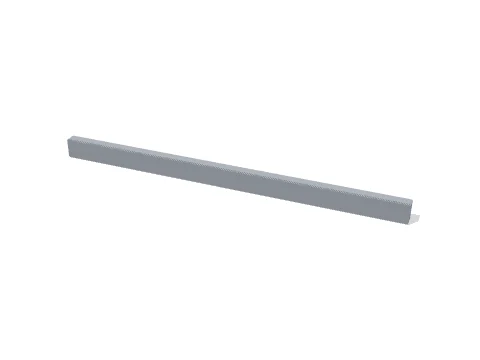

Front rail

Closes the slots of the comb at the front.

Size
198 × 12 × 6 mm
Print
On its side.
Filament
≈ 12 g
STL 26 KB

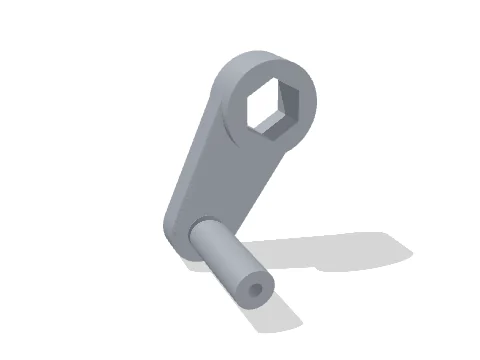

Crank

Fits on the hex of the right journal. The dome nut on the rod holds it on.

Size
38 × 28 × 27 mm
Print
Flat, pin up.
Filament
≈ 4 g
STL 97 KB

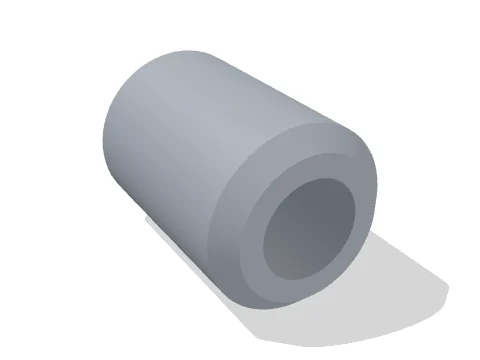

Knob

Turns on the crank pin, held by an M3 × 8 and a washer.

Size
20 × 14 × 14 mm
Print
Standing up.
Filament
≈ 2 g
STL 38 KB
Also needed

Parts you buy

  • 230 mm of M4 threaded rod (cut from a 1 m rod and file the ends), 2 M4 dome nuts and 2 M4 washers.
  • M3 screws: 4 × 12 for the base, 8 × 16 for the comb and the rail, 1 × 8 with a washer for the knob. They cut their own thread in the plastic.
  • Optional: dry PTFE spray or a little silicone grease for the cams.
Print settings

Slicer settings

0.20 mmlayer height
3walls
15%infill
PLA or PETGmaterial

For a 0.4 mm nozzle. Filament amounts are estimates for these settings.

Assembly

How to build it

Print the parts

Nothing needs supports. There are 32 cams and 32 slats, so print them in batches. Turn on elephant's foot compensation, or scrape the bottom edges of the cams and slats, so neighbouring slats never touch. Check that a cam's key drops into the socket of another cam.

Frame

Stand the two end plates in the grooves of the base and screw them on from below, two M3 × 12 each. Push the left journal through the left plate from the inside, so its flange is on the inside, and the right journal through the right plate.

Start the camshaft

Push the rod through the left journal from the outside until it is flush with the key. Lay a slat over a cam, the cam's disc in the window and the side of the slat that was on the print bed facing left. Hold the cam's socket against the key of the journal, turn it until the key drops in, and push the rod on through the cam.

Fill the row

Do the same with the other 31 slats and cams: slat over cam, socket onto the key of the cam before, rod through. Every cam only fits one way, so the waves come out right by themselves. For the last one, pull the right journal out a little, line up its socket with the last key, push it back and push the rod through it.

Comb and rail

Stand the slats up so all stems point straight up. Slide the comb in from behind, between the end plates, so every stem goes into its own slot, and screw it on with four M3 × 16 through the plates. Screw the front rail on in front of it the same way.

Crank

Slide the crank onto the hex and put a washer and a dome nut on both ends of the rod. Tighten them firmly: they clamp the cams together, so the keys don't rattle. Put the knob on the crank pin and hold it with an M3 × 8 and a washer.

Turn it

Turn the crank slowly the first time. If a slat catches, check that it faces the right way and that its stem sits in its own slot. A puff of dry PTFE spray on the cams makes it run quieter.

Small parts and screws: keep them away from young children.

More free models

Print this one next

3D render of the Radial Engine: seven silver finned cylinders around a graphite crankcase, a black three-blade propeller with a red spinner, on a white stand

Radial Engine

A 7-cylinder radial with a master rod, six link rods and a 34 cm propeller. Turn the crank and all seven pistons move.

  • 19 parts
  • ≈ 1.0 kg filament
  • STL
View and download
3D render of the V8 Engine: an orange block with graphite heads, eight silver velocity stacks, timing gears and the hand-turned pulley at the front, on a black stand

V8 Engine

A cross-plane V8 with a gear-driven camshaft and sixteen moving valves. Turn the handle and watch it run.

  • 26 parts
  • ≈ 0.8 kg filament
  • STL
View and download

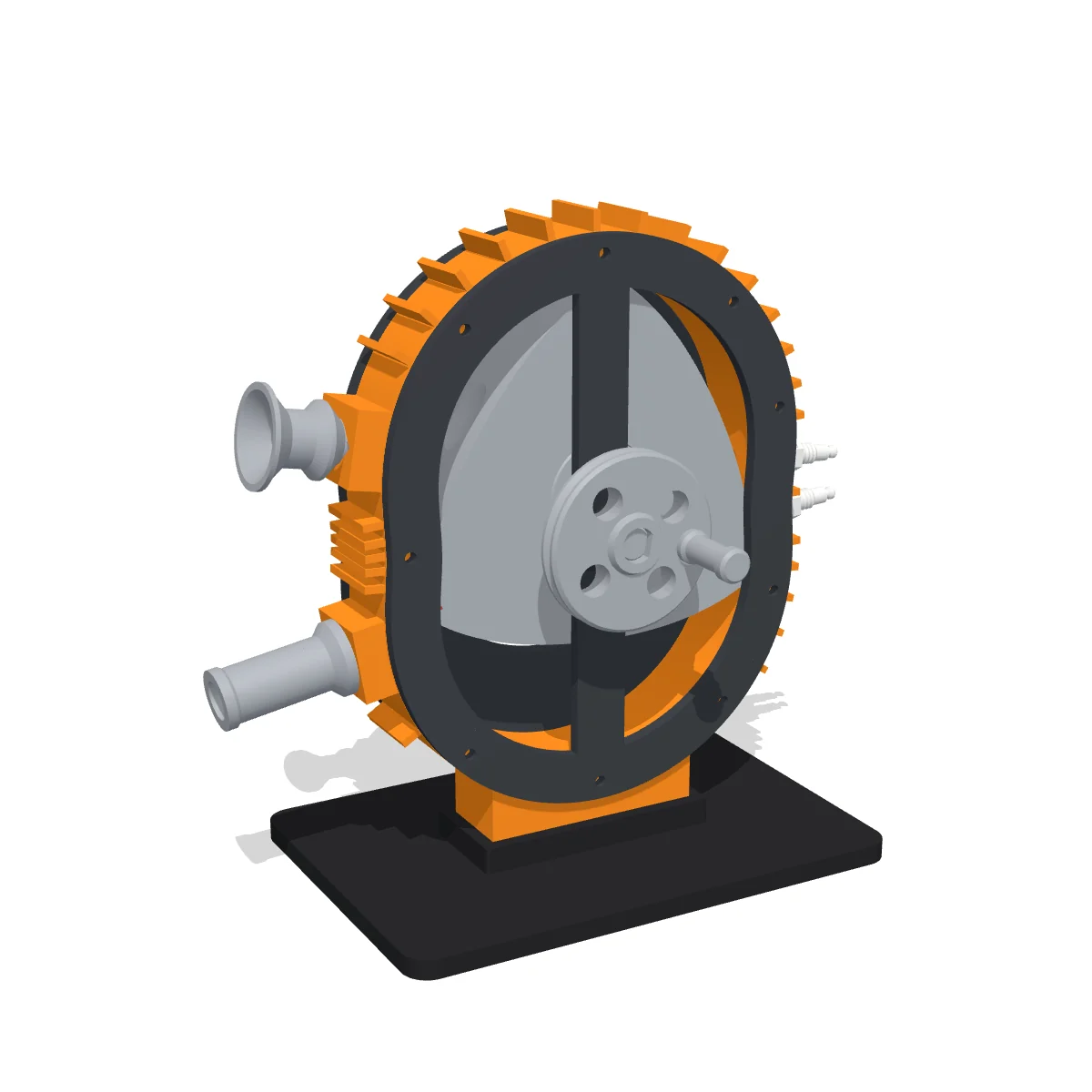

3D render of the Wankel Rotary Engine: a finned orange housing with the silver rotor visible through the open front, spark plugs on the right, intake and exhaust on the left, on a black stand

Wankel Rotary Engine

A single-rotor Wankel with an open front and real phasing gears. Turn the handle and watch the rotor go round.

  • 13 parts
  • ≈ 0.4 kg filament
  • STL
View and download
3D render of the Tourbillon Wall Clock: a white dial with black hands over yellow gears in a graphite frame, the tourbillon cage with its blue balance and hairspring below

Tourbillon Wall Clock

A weight-driven wall clock with a one-minute tourbillon that is also its seconds hand.

  • 34 parts
  • ≈ 0.3 kg filament
  • STL
View and download

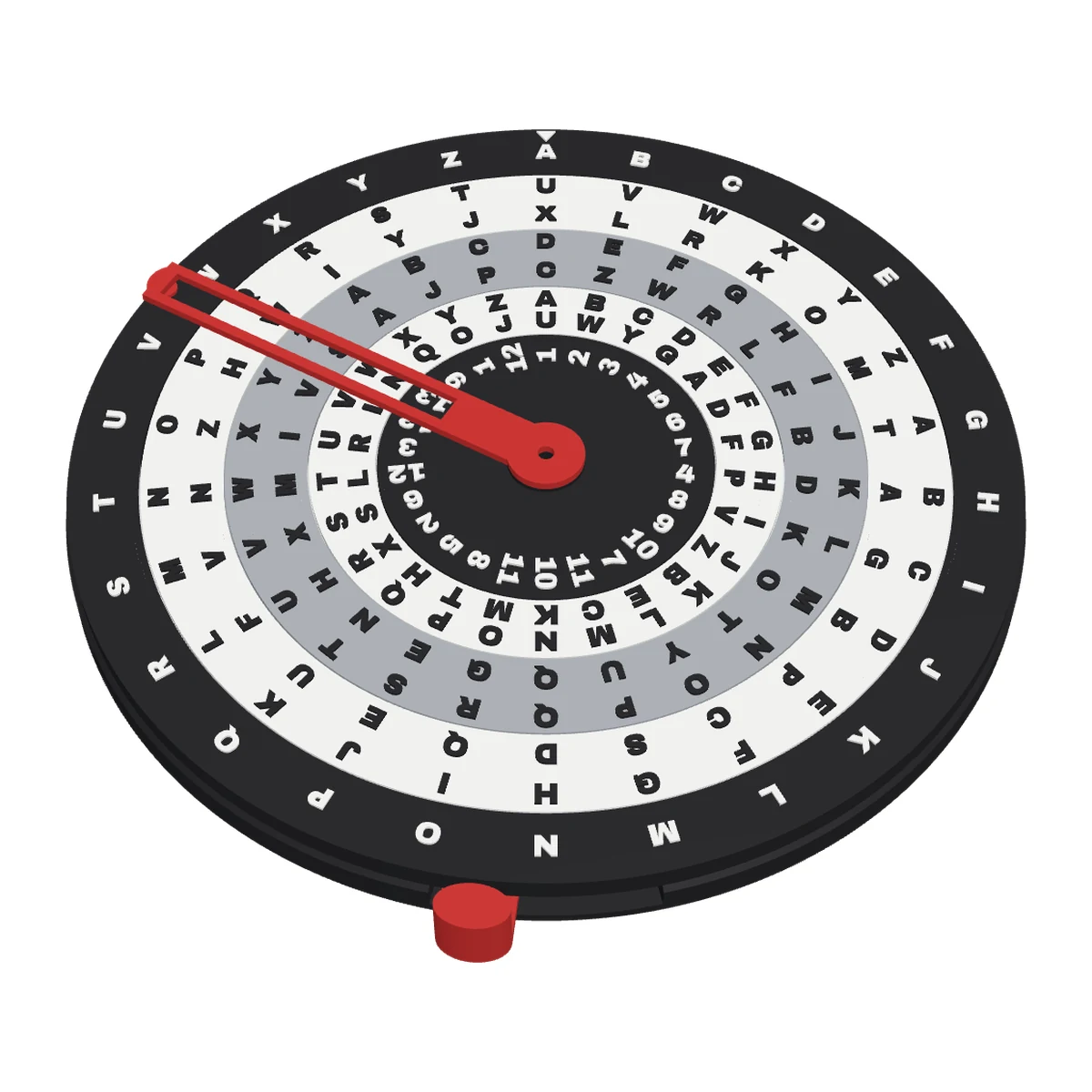

3D render of the Enigma Cipher Machine: a round black dial with a white letter ring, three rotor rings with black letters and a red key and pointer

Enigma Cipher Machine

Three rotors wired like the real Enigma I and a key that steps them. It really encrypts.

  • 13 parts
  • ≈ 0.3 kg filament
  • STL
View and download
3D render of the Manual Gearbox: silver gears on two shafts in an open graphite case, blue shift forks and rails above them, and the black lever in its H-pattern gate

Manual Gearbox

A five-speed gearbox with reverse and an H-pattern lever. Shift through the gears and watch the dog collars engage.

  • 41 parts
  • ≈ 0.4 kg filament
  • STL
View and download
3D render of the Music Box: a yellow drum full of black pins between the cheeks of a teal frame, a silver comb under its front and the crank on the right

Music Box

A hand-cranked music box with a drum you program with filament pins. Two octaves, tuned by hand.

  • 8 parts
  • ≈ 0.2 kg filament
  • STL
View and download
3D render of the Walking Strandbeest: eight orange Jansen legs on a graphite body with white cranks

Walking Strandbeest

Eight Theo Jansen legs and an N20 gear motor on two AA batteries. It walks across your desk by itself.

  • 17 parts
  • ≈ 0.2 kg filament
  • STL
View and download
3D render of the Car Differential: a graphite housing cut open along the axle, an orange ring gear and pinion, a blue carrier with the spider gears, silver axles to two white wheels with black tyres, on a white stand

Car Differential

A cutaway rear axle with a crank: hold one wheel and the spider gears make the other turn twice as fast.

  • 19 parts
  • ≈ 0.8 kg filament
  • STL
View and download
3D render of the Coffee Cup Stirling Engine: a red flywheel on a black A-frame above a silver air chamber with aluminium plates, the white conrods and the orange power cylinder

Coffee Cup Stirling Engine

A low temperature Stirling engine with a balloon diaphragm and a big flywheel. It runs on a mug of hot coffee.

  • 17 parts
  • ≈ 0.2 kg filament
  • STL
View and download
3D render of the Blacksmith Automaton: a blue smith with his hammer raised next to a black anvil with an orange horseshoe, on a terracotta box with a yellow crank

Blacksmith Automaton

A hand-cranked automaton: a snail cam lifts the smith's hammer and lets it drop on the horseshoe.

  • 16 parts
  • ≈ 0.1 kg filament
  • STL
View and download
3D render of the Orrery: an orange Sun with six planets and the Moon on silver arms, above yellow gears in a graphite drum with a crank

Orrery

The Sun, six planets and the Moon on geared arms. One turn of the crank is one year.

  • 43 parts
  • ≈ 0.6 kg filament
  • STL
View and download

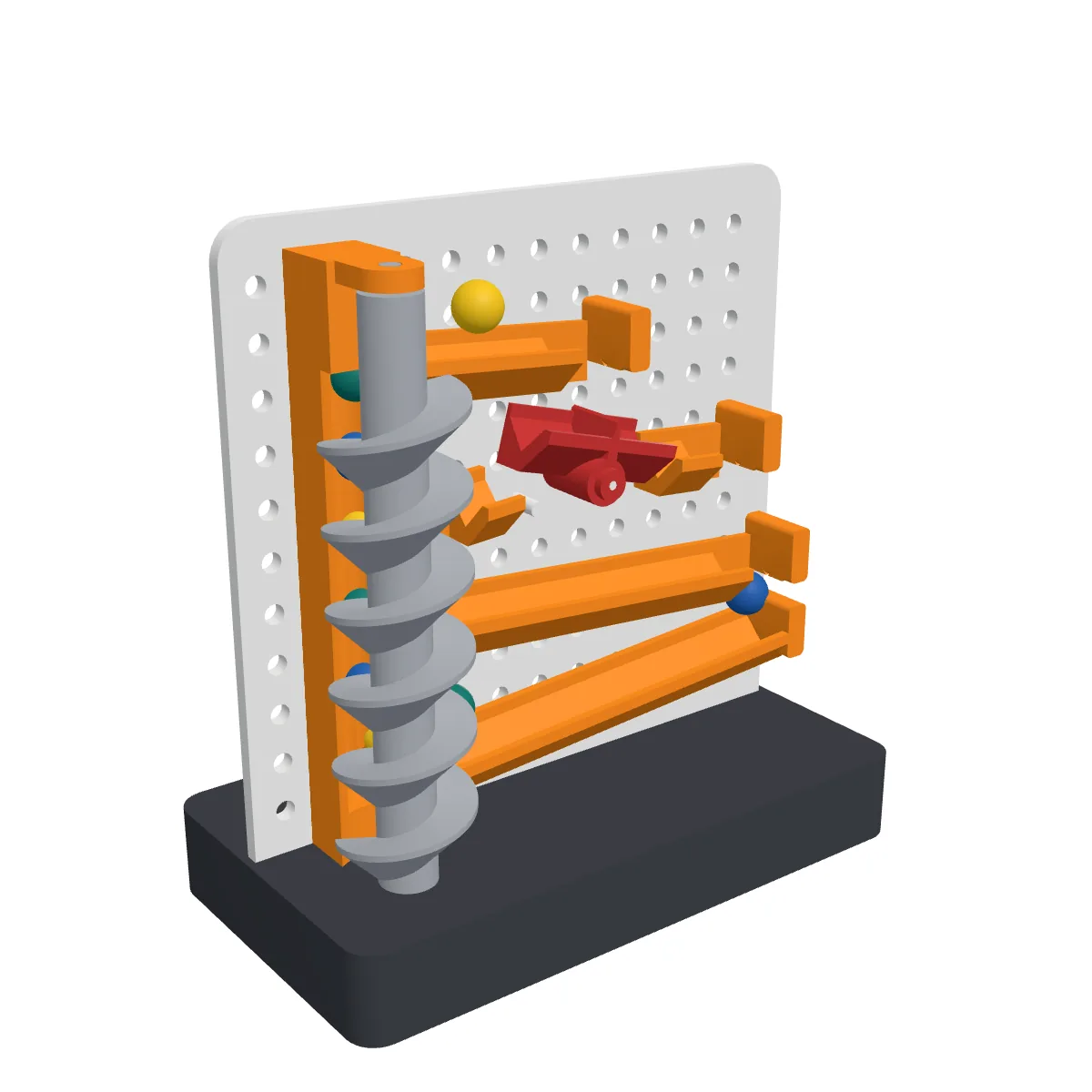

3D render of the Marble Machine: a silver screw lift on the left, orange tracks and a red rocker on a white pegboard, on a graphite base, with coloured marbles

Marble Machine

A screw lift carries marbles up, a rocker sends them left and right, four tracks bring them back. Runs on two AA batteries.

  • 10 parts
  • ≈ 0.5 kg filament
  • STL
View and download
3D render of the Tesla Turbine: an orange housing ring with its inlet arm between two graphite side covers on a black stand, with a red spoked pulley on the shaft

Tesla Turbine

Nikola Tesla's bladeless turbine: nine flat discs in a housing, spun by compressed air from the rim inwards.

  • 9 parts
  • ≈ 0.2 kg filament
  • STL
View and download
3D render of the Tendon-Driven Robot Hand: a white hand with a graphite palm on a black open forearm, five blue servos with orange spools in a staircase and five red lines running down from the wrist

Tendon-Driven Robot Hand

A life-size hand with fishing line tendons and elastic: five servos and an Arduino make the gestures, or you pull the rings by hand.

  • 20 parts
  • ≈ 0.3 kg filament
  • STL
View and download

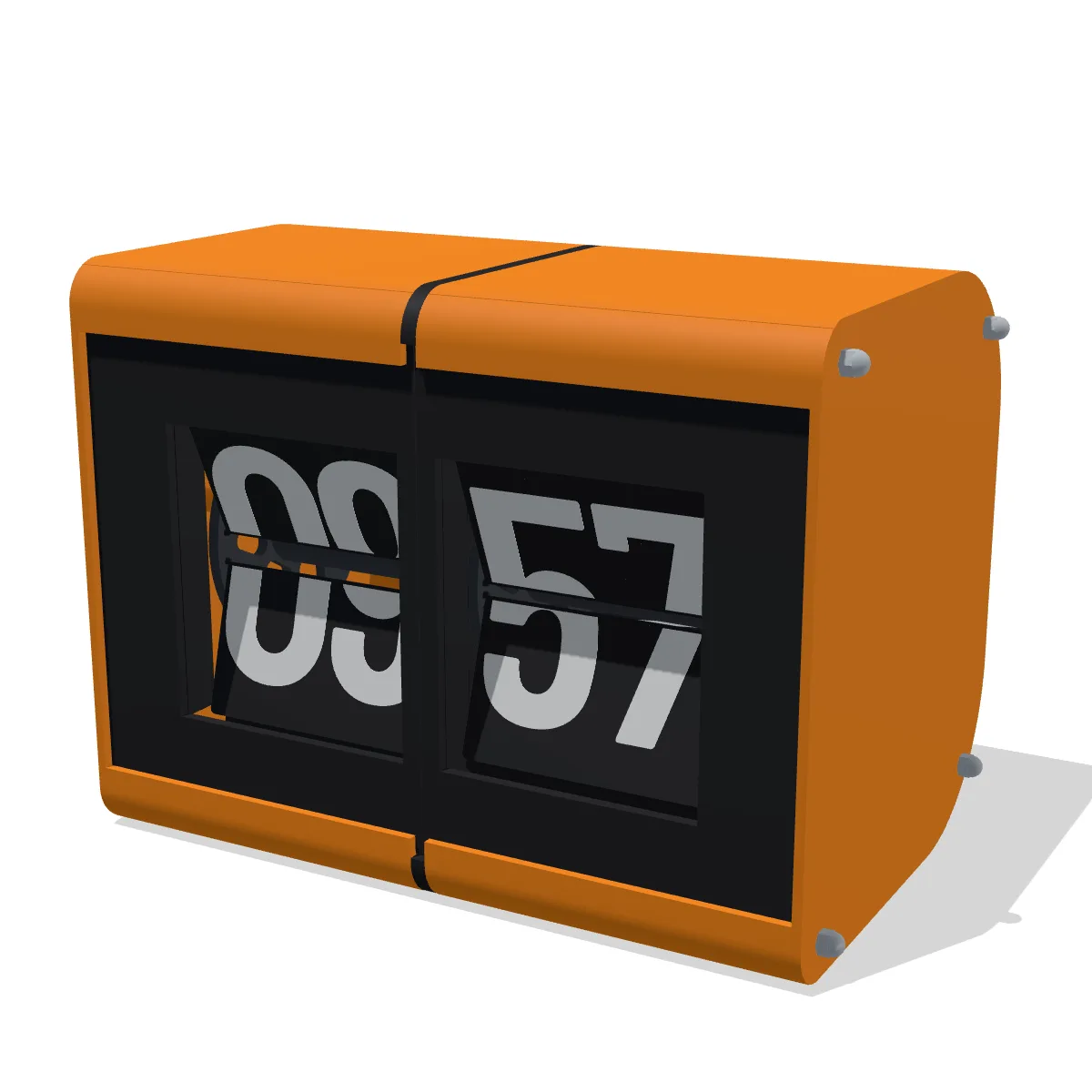

3D render of the Split-Flap Clock: an orange housing with a black front and two windows showing 09 57 in white digits on black flaps
