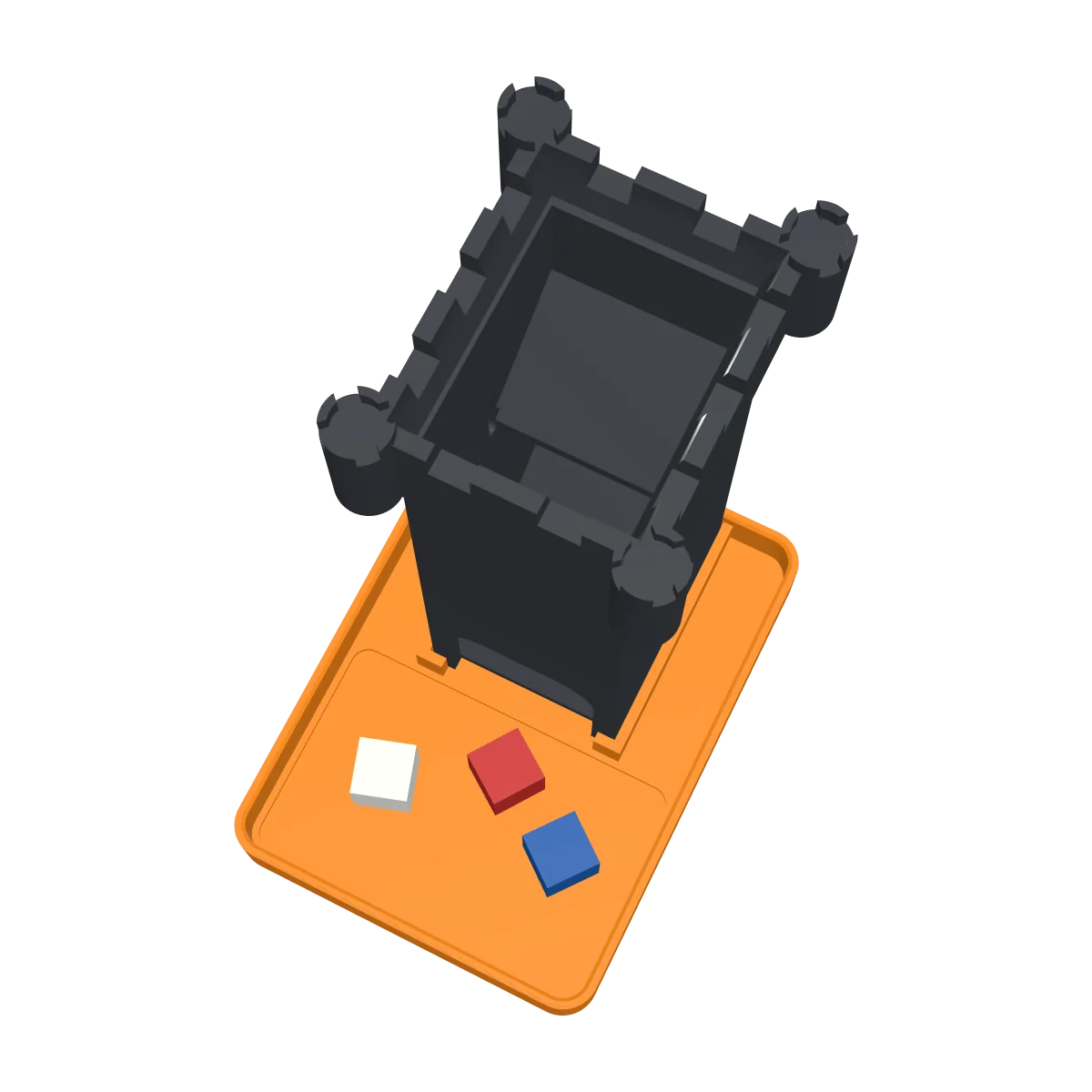

3D render of the Dice Tower: a graphite castle tower with a crenellated crown and corner turrets, standing in an orange tray with dice in front of the arched gate
Free 3D model

Dice Tower

Drop your dice into the crown and they bounce off two baffles, roll down the exit ramp and come out through the arched gate into the tray. The baffles overlap, so nothing falls straight through, and there is at least 31 mm of room everywhere inside, so d6, d20 and every die in between roll freely. The tower is two halves that print lying down; the crown slides over the top and the tray's collar holds the bottom, so it needs no glue and comes apart for storage.

  • 4printed parts
  • 16 × 11 × 19 cmassembled (L × W × H)
  • ≈ 0.3 kgfilament in total
  • 165 mmbed length for the tower halves, which print lying down; the tallest part standing up is the crown (35 mm)
Download all files ZIP · 58 KB

Free for personal use under CC BY-NC 4.0: print it, remix it and share it with credit to Shapekit. Please don't sell the files or the prints.

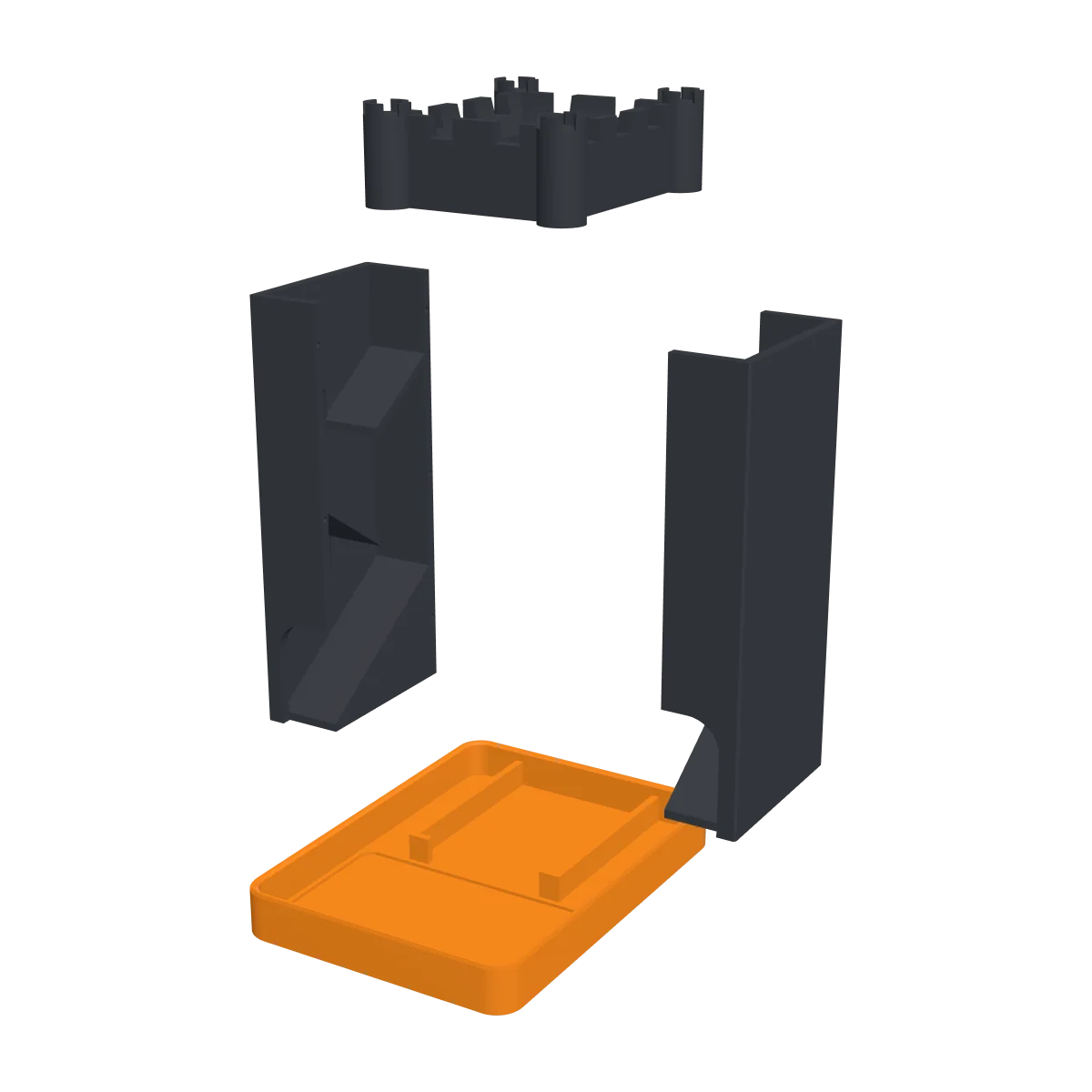

Take it apart in 3D · Parts · How to build it

In 3D

Turn it, take it apart

Every part as you print it. Pick colours to see what your filament will look like.

The 3D model (0.3 MB) loads when you get here.

Preview colours

Tower and crown
Tray

Drag to rotate · scroll or pinch to zoom

In the download

4 parts, ready to print

Every STL is already placed the right way up. Download them all at once, or one by one.

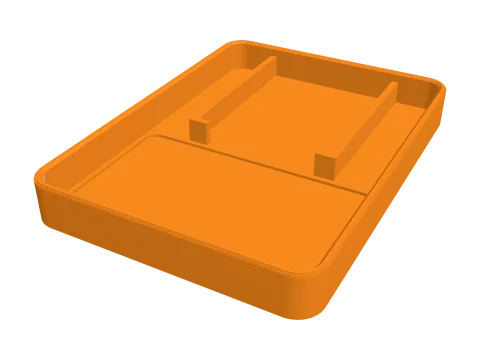

Tray

The dice land here: 110 × 150 mm with an 18 mm rim and a 1.2 mm recess in the floor for a felt sheet. The collar at the back holds the foot of the tower with 0.3 mm play.

Size
150 × 110 × 18 mm
Print
Flat on the bed, no supports.
Filament
≈ 80 g
STL 0.1 MB

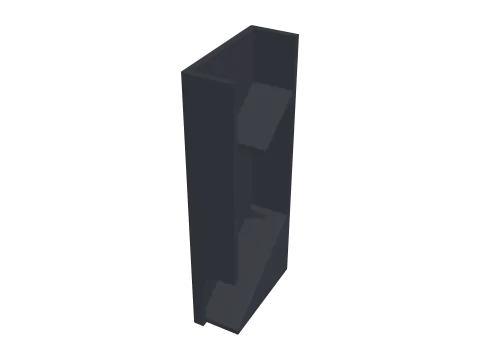

Left half

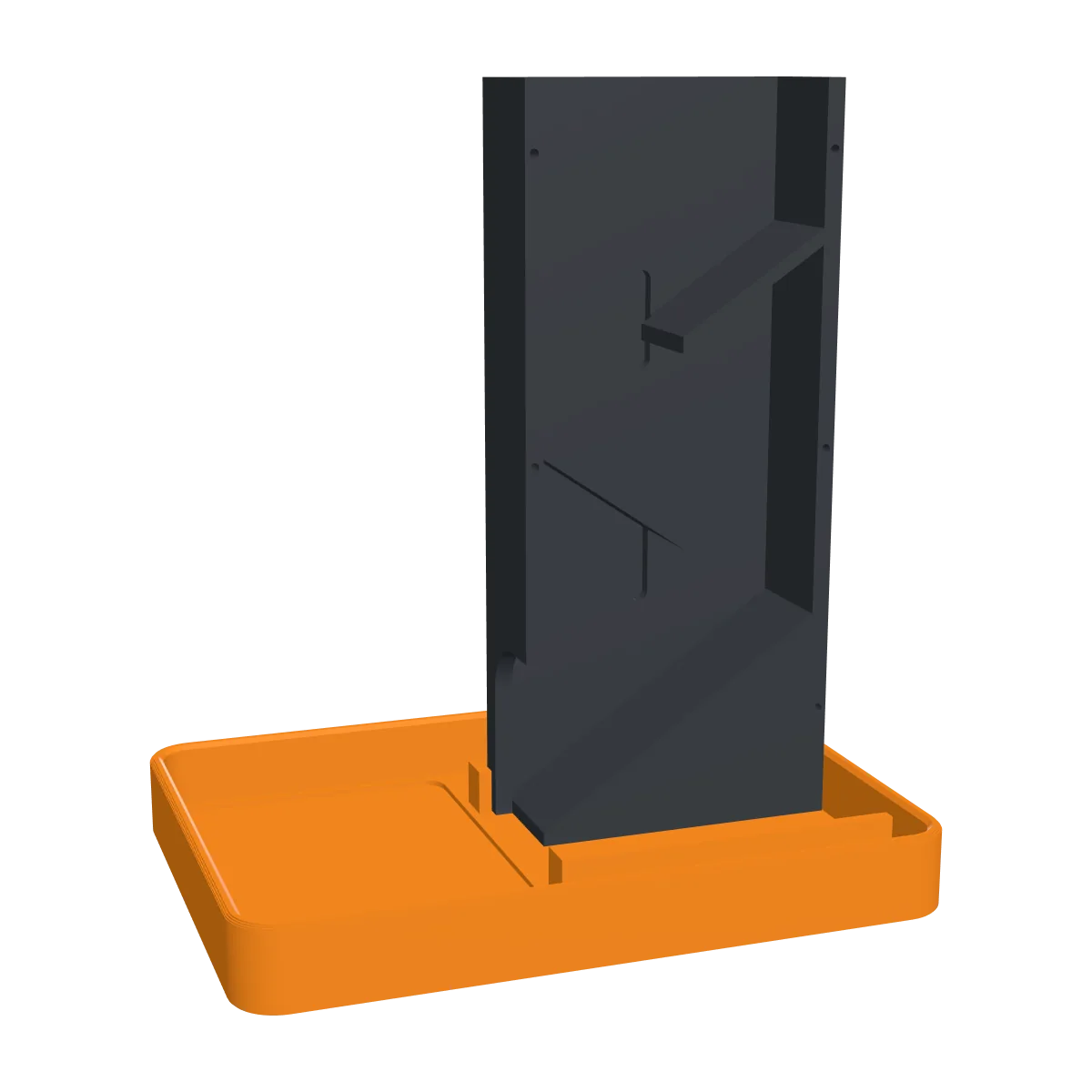

One side wall with half of the front and back walls, the two baffles and the exit ramp, all at 35°. Three 2 mm holes in each cut edge take filament pins.

Size
165 × 72 × 29 mm
Print
Lying on its outer side wall, cut face up. No supports: every ramp is a straight wall in this position.
Filament
≈ 83 g
STL 44 KB

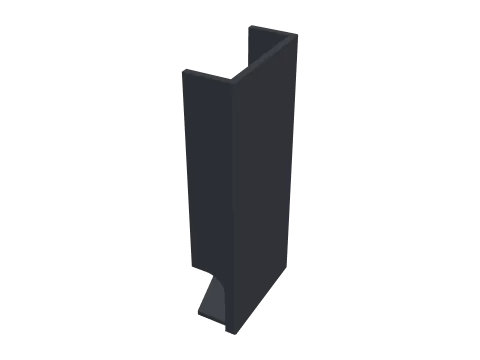

Right half

The mirror image of the left half.

Size
165 × 72 × 29 mm
Print
Lying on its outer side wall, cut face up. No supports.
Filament
≈ 83 g
STL 44 KB

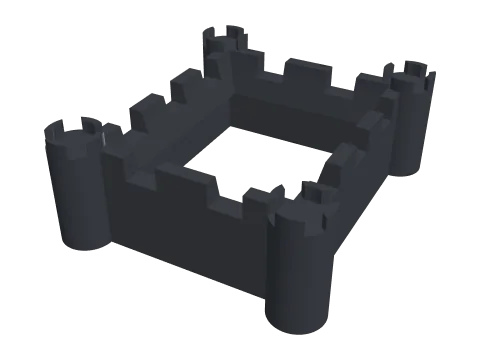

Crown

The battlements with four corner turrets and a funnel mouth. It slides 12 mm down over the top of the tower with 0.3 mm play and holds the two halves together.

Size
97 × 83 × 34 mm
Print
Upright, no supports: the ceiling over the socket is a 45° slope.
Filament
≈ 42 g
STL 0.1 MB
Also needed

Parts you buy

  • 6 pieces of 1.75 mm filament, 10 mm long, as alignment pins between the two halves.
  • Optional: a self-adhesive felt sheet, 1 mm thick, cut to 100 × 64 mm with rounded corners, for the tray. It makes the dice quieter.
  • Fits dice up to about 25 mm across, so a standard d20 and 16 mm d6 roll through easily.
Print settings

Slicer settings

0.20 mmlayer height
3walls
15%gyroid infill
PLA or PETGmaterial

For a 0.4 mm nozzle. Filament amounts are estimates for these settings.

Assembly

How to build it

Print the parts

Print the two halves lying on their outer side wall, the crown upright and the tray flat. None of them needs supports. Turn on elephant's foot compensation, or scrape the bottom edges of the halves, so the tower drops into the collar easily.

Fit the pins

Push a 10 mm piece of filament into each of the six holes in the cut edge of one half. If a pin is loose, put a drop of glue on it.

Join the halves

Press the other half onto the pins until the cut faces meet all along the tower.

Put on the crown

Hold the halves together and slide the crown down over the top until it stops.

Stand it in the tray

If you use felt, stick it into the recess first. Then lower the tower into the collar at the back of the tray, gate to the front.

Roll

Drop your dice into the crown. They come out of the gate into the tray.

Dice and the filament pins are small enough to swallow: keep them away from small children.
