3D render of the Music Box: a yellow drum full of black pins between the cheeks of a teal frame, a silver comb under its front and the crank on the right
Free 3D model

Music Box

A music box you program yourself. The drum has a hole for every note at every step, 960 in all: push short pieces of filament into the holes, turn the crank, and the pins pluck a printed comb of 15 tines, two octaves of C major. The ZIP has pin charts for Ode to Joy, Twinkle, Twinkle, Little Star and Frère Jacques as a round, and a blank one for your own tune: wrap a chart round the drum and push a pin through every dot. The comb is printed PLA, so it sounds softer and rounder than a steel music box, and you tune each tine with a file and a tuner app.

  • 8printed parts
  • 12 × 11 × 11 cmassembled (L × W × H)
  • ≈ 0.2 kgfilament in total
  • 56 mmheight of the frame, the tallest part (94 × 144 mm on the bed)
Download all files ZIP · 1.3 MB

Free for personal use under CC BY-NC 4.0: print it, remix it and share it with credit to Shapekit. Please don't sell the files or the prints.

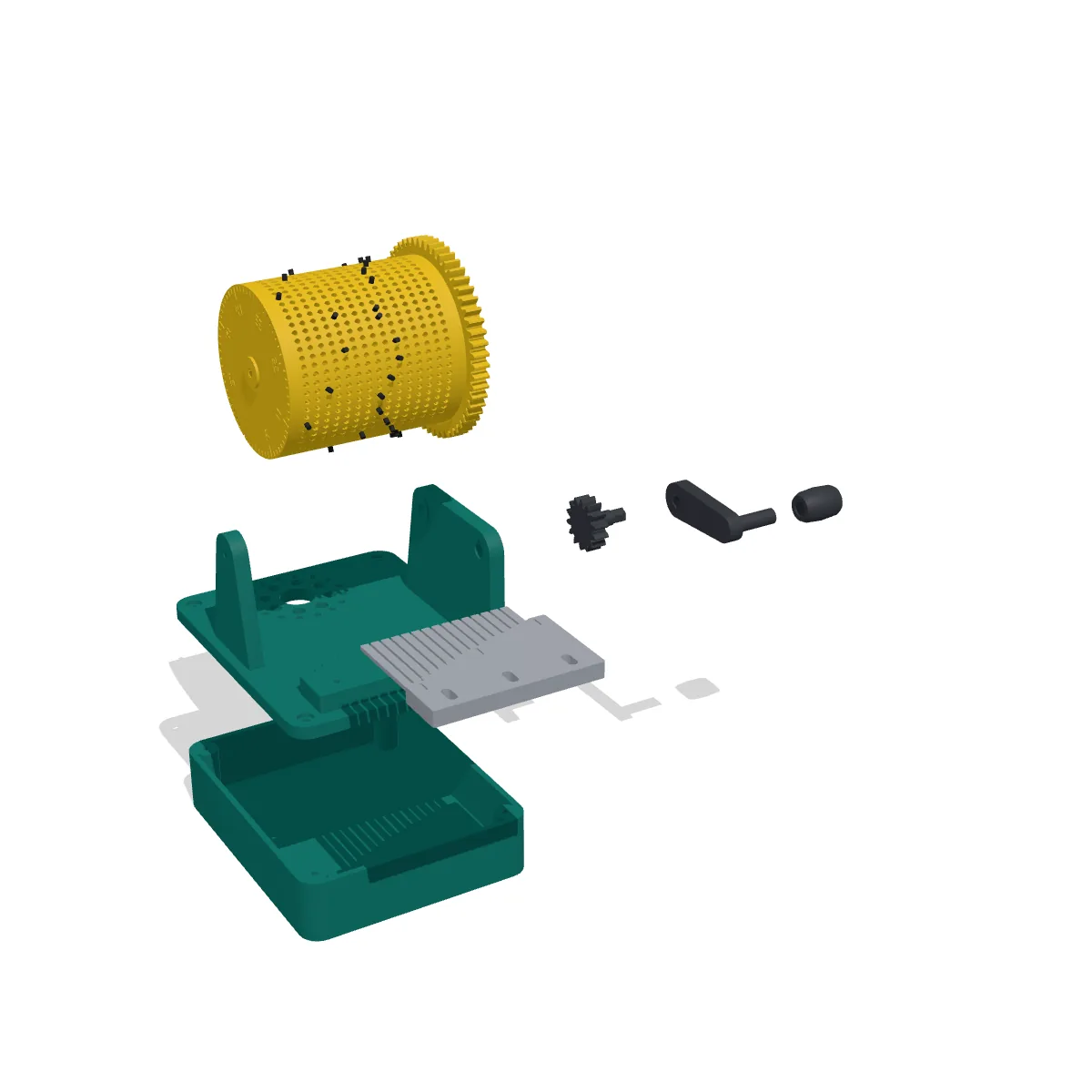

Take it apart in 3D · Parts · How to build it

In 3D

Turn it, take it apart

Every part as you print it. Pick colours to see what your filament will look like.

The 3D model (4.6 MB) loads when you get here.

Preview colours

Case and frame
Drum
Comb
Crank

Drag to rotate · scroll or pinch to zoom

In the download

8 parts, ready to print

Every STL is already placed the right way up. Download them all at once, or one by one.

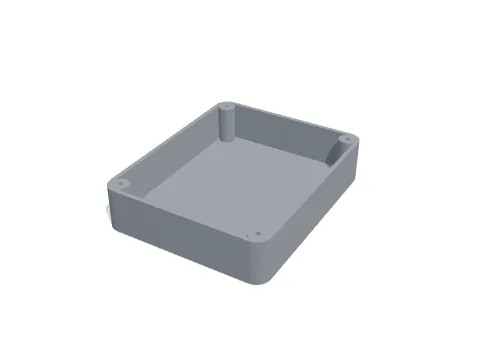

Case

A closed box under the frame. The frame plate on top of it is the soundboard; the box gives the notes their body. Four bosses in the corners take the screws.

Size
116 × 94 × 25 mm
Print
Open side up. No supports.
Filament
≈ 63 g
STL 0.1 MB

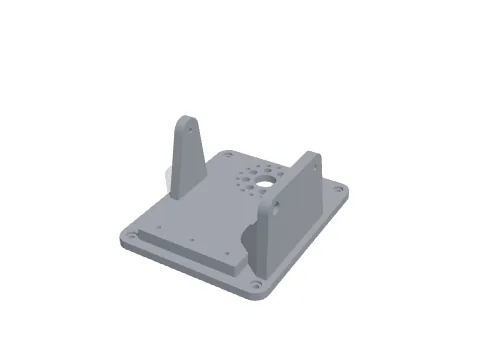

Frame

The plate, the two cheeks that carry the drum and the crank, and the block the comb is screwed to, in one piece, so the drum and the comb always line up. The rosette of holes lets the sound out.

Size
116 × 94 × 53 mm
Print
Flat side down. No supports: the holes in the cheeks have pointed tops.
Filament
≈ 61 g
STL 0.5 MB

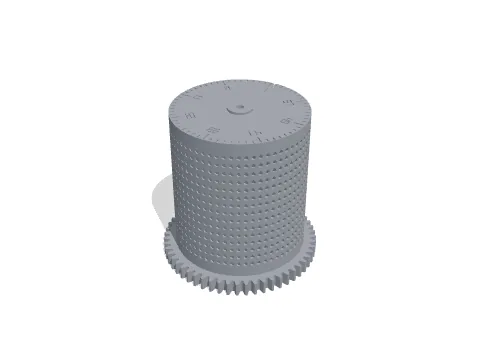

Drum

960 holes, 15 notes along it and 64 steps round it, for the pins that play the tune. The 56-tooth gear is part of it. Numbers on the far end count the steps and a notch marks where step 1 starts.

Size
73 × 72 × 72 mm
Print
Gear down. No supports: the pin holes have pointed tops and the far end closes with a 45° cone.
Filament
≈ 100 g
STL 3.4 MB

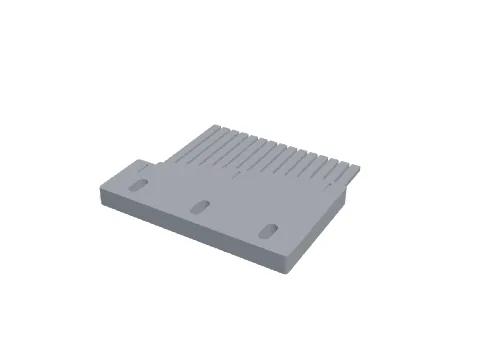

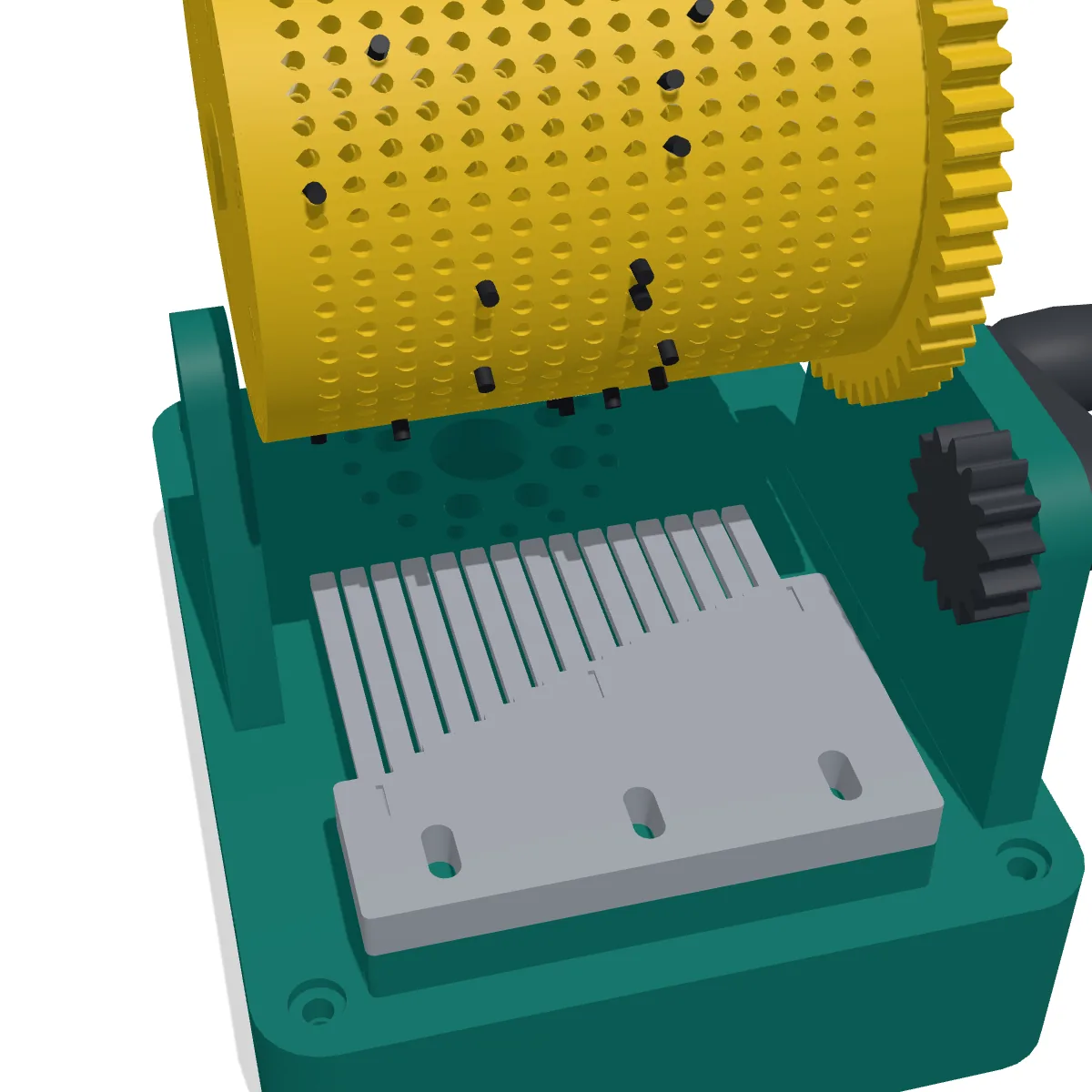

Comb

15 tines tuned to two octaves of C major, from C4 (38.9 mm long) to C6 (19.4 mm). A groove on top marks each C. The slots let it slide 2 mm along the tines, so the pins meet the tips where they should.

Size
63 × 58 × 6 mm
Print
Flat, tines on the bed, at 100% infill and 0.12 mm layers. In PLA: the tine lengths are worked out for it.
Filament
≈ 14 g
STL 0.1 MB

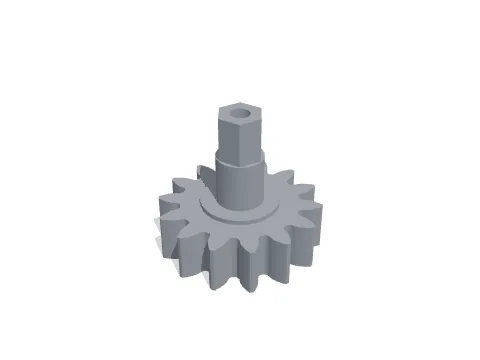

Crank pinion

14 teeth on a 6 mm shaft that runs through the cheek: four turns of the crank turn the drum once.

Size
21 × 20 × 18 mm
Print
Gear down. No supports.
Filament
≈ 2 g
STL 0.2 MB

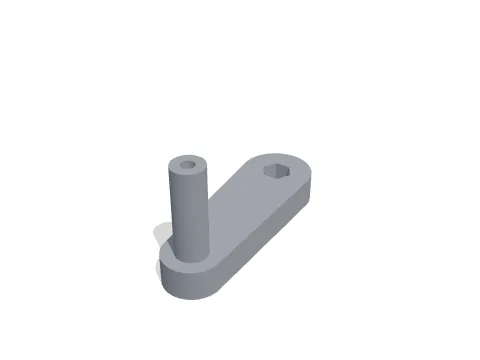

Crank arm

Fits the hex on the shaft, held by an M3 × 8 and a washer. The peg at the other end carries the knob.

Size
42 × 23 × 14 mm
Print
Flat, peg up.
Filament
≈ 3 g
STL 28 KB

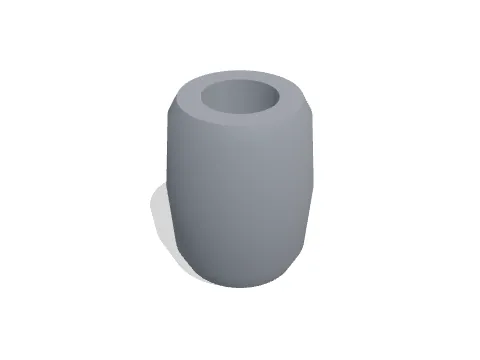

Knob

Turns on the peg of the arm, held by an M3 × 8 and a washer.

Size
16 × 13 × 13 mm
Print
Standing up.
Filament
≈ 2 g
STL 45 KB

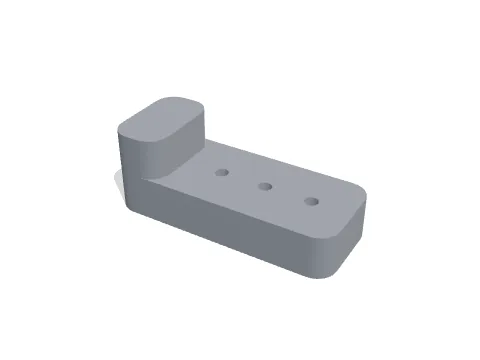

Pin gauge

Cuts the pins to length: stand it on the table, push filament down a hole until it stops and cut it off flush with the top. Every pin comes out 6.5 mm long, so it sticks out 2 mm from the drum.

Size
34 × 14 × 12 mm
Print
Flat. Not part of the box: only in the download.
Filament
≈ 3 g
STL 27 KB
Also needed

Parts you buy

  • 86 mm of 3 mm steel rod for the drum to turn on.
  • 1.75 mm filament for the pins, 6.5 mm a pin: Ode to Joy takes 46 pins, about 30 cm. Any colour that stands out against the drum.
  • M3 screws: 4 × 12 for the case, 3 × 16 with washers for the comb, 2 × 8 with washers for the crank and the knob.
  • A flush cutter for the pins, pliers to pull them out again, and a small file for tuning the tines.
  • A tuner app on your phone.
Print settings

Slicer settings

0.2 mmlayer height (0.12 mm for the comb)
3walls
15%infill; 100% for the comb
PLAmaterial: the tine lengths are worked out for PLA

For a 0.4 mm nozzle. Filament amounts are estimates for these settings.

Assembly

How to build it

Print the parts

Nothing needs supports. Print the comb in PLA, flat with the tines on the bed, at 100% infill and 0.12 mm layers: that is what the tine lengths are worked out for.

Cut the pins

Stand the pin gauge on the table, push filament down a hole until it touches the table and cut it off flush with the top. Every pin comes out 6.5 mm long. The pins should go into the drum with a firm push; if a hole is too tight, open it with a 1.8 mm drill turned by hand.

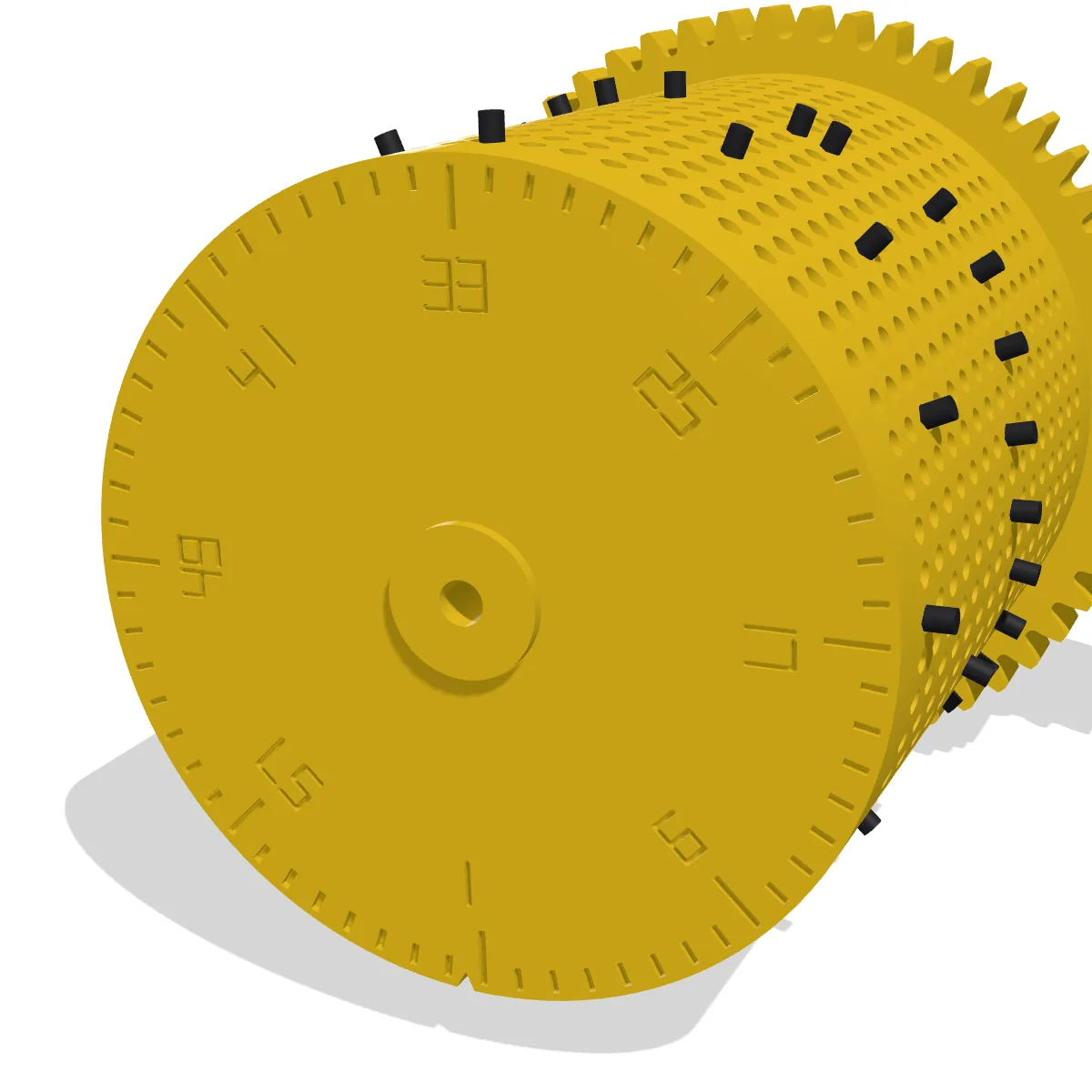

Program the drum

Print a page of the pin charts (in the ZIP) at 100%, cut out the strip and wrap it round the drum: gear on the right, bottom edge at the notch on the far end. Push a pin through every black dot until it stops, then tear the paper off. To change the tune, pull the pins out with pliers.

Drum and crank

Push the 3 mm rod through the far cheek, through the drum with its gear on the crank side, and into the other cheek. Slide the shaft of the crank pinion through its hole from the inside, fit the arm on the hex with an M3 × 8 and a washer, and the knob on the peg the same way.

Set the comb

Screw the comb onto its block with three M3 × 16 and washers, not yet tight. Turn the crank slowly and slide the comb until every pin pushes its tine down at the very tip and lets it snap back, while the drum itself never touches a tine. Then tighten the screws.

Tune it

Check each tine with a tuner app. If a note is low, file a little off the tip to raise it; if it is high, file the underside near the root a little thinner to lower it. Take 0.1 mm off a tip and the note goes up by about a tenth of a semitone.

Close the case

Set the frame on the case and screw it down with four M3 × 12. Stand the box on a table: the table makes it louder.

Play

Turn the crank clockwise, about once every four seconds: that is the tempo the charts are written for. The drum plays the tune once for every four turns, and then starts again.

Small parts and short pins: keep them away from young children.
